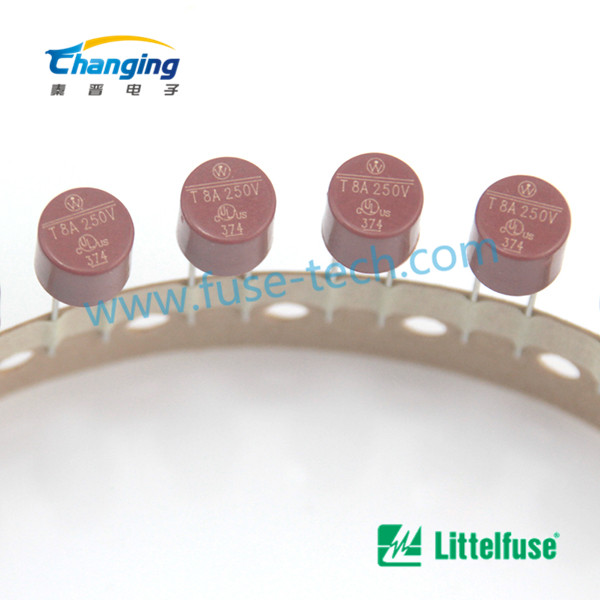

3741800
力特3741800 無鹵素、無鉛且符合RoHS標準 降低對PCB板的空間要求 可直接軟焊或插入 獲國際認證 低內阻 防電擊外殼 抗振 額定電流從0.050A至10A應用領域:電池充電器 消費電子產品 電源 工業控制器
| 型號 | AmpCode |
Rated Current |
Voltage Rating |
Bearking Capacity |
VoltageDrop 1.0×1N max.(mV) |
PowerDissipation 1.5×1Nmax.(mW) |
MeitingIntegral 10×1Nmin.（A2s) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 3742100 | 2100 | 10.00A | 250V | 50 A / 250 VAC | 90 | 1250 | 280 |
 |
| 3741800 | 1800 | 8.00A | 250V | 50 A / 250 VAC | 80 | 1000 | 150 |
|
| 3741630 | 1630 | 6.30A | 250V | 50 A / 250 VAC | 90 | 570 | 110 |
|
| 3741500 | 1500 | 5.00A | 250V | 50 A / 250 VAC | 95 | 475 | 59 |
|
| 3741400 | 1400 | 4.00A | 250V | 50 A / 250 VAC | 100 | 400 | 36 |
|
| 3741315 | 1315 | 3.15A | 250V | 50 A / 250 VAC | 110 | 350 | 22 |
|
| 3741250 | 1250 | 2.50A | 250V | 50 A / 250 VAC | 120 | 300 | 14 |
|
| 3741200 | 1200 | 2.00A | 250V | 50 A / 250 VAC | 125 | 250 | 7.5 |
|
| 3741160 | 1160 | 1.60A | 250V | 50 A / 250 VAC | 130 | 210 | 4.5 |
|
| 3741125 | 1125 | 1.25A | 250V | 50 A / 250 VAC | 145 | 185 | 3.2 |
|
| 3741100 | 1100 | 1.00A | 250V | 50 A / 250 VAC | 155 | 155 | 2.1 |
|
| 3740800 | 0800 | 800mA | 250V | 50 A / 250 VAC | 160 | 130 | 0.98 |
|
| 3740630 | 0630 | 630mA | 250V | 50 A / 250 VAC | 210 | 135 | 0.75 |
|
| 3740500 | 0500 | 500mA | 250V | 50 A / 250 VAC | 220 | 110 | 0.6 |
|
| 3740400 | 0400 | 400mA | 250V | 50 A / 250 VAC | 250 | 100 | 0.32 |
|
| 3740315 | 0315 | 315mA | 250V | 50 A / 250 VAC | 300 | 95 | 0.26 |
|
| 3740250 | 0250 | 250mA | 250V | 50 A / 250 VAC | 350 | 90 | 0.17 |
|
| 3740200 | 0200 | 200mA | 250V | 50 A / 250 VAC | 390 | 80 | 0.1 |
|
| 3740160 | 0160 | 160mA | 250V | 50 A / 250 VAC | 480 | 80 | 0.058 |
|
| 3740125 | 0125 | 125mA | 250V | 50 A / 250 VAC | 550 | 70 | 0.044 |
|
| 3740100 | 0100 | 100mA | 250V | 50 A / 250 VAC | 600 | 60 | 0.025 |
|
| 3740080 | 0080 | 80mA | 250V | 50 A / 250 VAC | 700 | 55 | 0.014 |
|
| 3740063 | 0063 | 63mA | 250V | 50 A / 250 VAC | 800 | 50 | 0.009 |
|
| 3740050 | 0050 | 50mA | 250V | 50 A / 250 VAC | 900 | 45 | 0.0056 |
|
