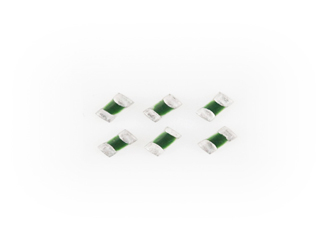

JFC0402-1100FS
JFC0402快速熔斷型保險絲，超小尺寸使它們非常適合用于空間受限的應用，如手持便攜式電子設(shè)備電路的二次保護。本系列產(chǎn)品無鉛化100%，符合ROHS指令要求。
| Part NO. | Rated VoltageDC | Rated Current(A) |
Intereupting Rating |
Resistance(mOhms)2 Typ. |
Typical Melt I2t DC(A2S)3 |
Data Sheet |
|---|---|---|---|---|---|---|
| JFC0402-1400FS | 32V | 4A | 35A | 11 | 0.60 |
 |
| JFC0402-1350FS | 32V | 3.5A | 35A | 14 | 0.45 |
|
| JFC0402-1300FS | 32V | 3A | 35A | 18 | 0.33 |
|
| JFC0402-1250FS | 32V | 2.5A | 35A | 24 | 0.20 |
|
| JFC0402-1200FS | 32V | 2A | 35A | 40 | 0.13 |
|
| JFC0402-1150FS | 32V | 1.5A | 35A | 78 | 0.06 |
|
| JFC0402-1100FS | 32V | 1A | 35A | 130 | 0.04 |
|
| JFC0402-0750FS | 32V | 750mA | 35A | 220 | 0.011 |
|
| JFC0402-0500FS | 32V | 500mA | 35A | 500 | 0.0043 |
|
| JFC0402-0375FS | 32V | 375mA | 35A | 780 | 0.0018 |
|
| JFC0402-0315FS | 32V | 315mA | 35A | 1000 | 0.0014 |
|
| JFC0402-0250FS | 32V | 250mA | 35A | 1500 | 0.0010 |
|
| JFC0402-0200FS | 32V | 200mA | 35A | 1750 | 0.0006 |
|
